Introduction

Product usage

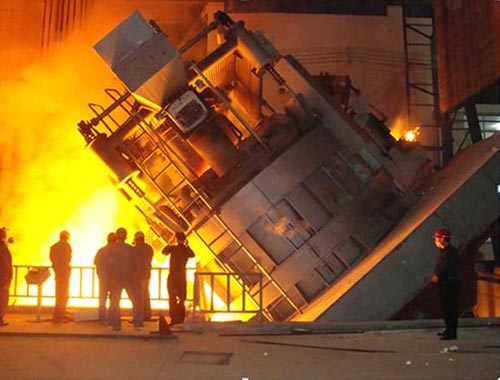

The Submerged Arc Furnace is mainly used for Producing ferroalloy (including ferrotungsten, high carbonferromanganese, high carbon silicon iron, high-carbon Cr, Nickel Iron Alloy) and Silicon, calcium carbide, corundum, Yellow Phosphorous, etc.

Main Compositions:

Mechanism System:

Furnace Shell

Furnace Cover

Fume exhaust system

Electrode System: electrode holder, electrode lifting device and electrode clamping/ releasing device

Charging System

Hydraulic System

High Current System

Water-cycling system

Tapping System

Electric system:

Transformer

High-voltage control protection system

Low-voltage control protection system

Computer operating system

Heavy gauge water-cooled cable

TAG: electric arc furnace electric furnace steelmaking

Parameters

Category			Main raw-material	Final products	Reaction temperature (Celsius Degree)	Power consumption KWh/t
Ferroalloy furnace	Ferrosilicon furnace	(45%) ferrosilicon	Ferrosilicon, scrap iron, coke	Ferrosilicon	1550-1770	2100-5500
	Ferrosilicon furnace	(75%) ferrosilicon	Ferrosilicon, scrap iron, coke	Ferrosilicon	1550-1770	8000-11000
	Ferromanganese furnace		Manganese ore, scrap iron, coke, lime	Ferromanganese	1500-1400	2400-4000
	Ferrochrome furnace		Chrome ore, silica, coke	Ferrochrome	1600-1750	3200-6000
	Ferrotungsten furnace		Tungsten crystal ore, coke	Ferrotungsten	2400-2900	3000-5000
	Silicon chromium furnace		Ferrochrome, silica, coke	Silicon chrome	1600-1750	3500-6500
	Silicon manganese furnace		Manganese ore, silica, iron scrap, coke	Silicon manganese	1350-1400	3500-4000
Steelmaking electric furnace			Iron ore, coke	Pig iron	1500-1600	1800-2500
calcium carbide furnace			Limestone, coke	Calcium carbide	1900-2000	2900-3200
Boron carbide furnace			Boron oxide, coke	Boron carbide	1800-2500
